DX51D Galvanized Coil

DX51D material is a mild steel galvanized layer for steel products. Specifically, DX51D is a steel grade characterized by its cold-formed bending and profiling qualities.

Category：Galvanized Steel Coil



+86 13075328279



admin@sdyikunmetal.com

E-mail

Related Products

Online Message

Product Description

The material of DX51D galvanized coil is a non-ferrous alloy with zinc as the matrix and other elements. The main alloying elements are aluminum, copper, magnesium and so on. Zinc alloy has low melting point, good fluidity, easy plastic processing and welding, and resistance to atmospheric corrosion. According to the manufacturing process, it is divided into cast zinc alloy and deformed zinc alloy. The commonly used casting zinc alloy is zinc-aluminum-copper-magnesium alloy, which has good casting process performance, and the cooling rate has little effect on the mechanical properties. They are mainly used in the manufacture of mechanical parts, toys, decorations and household appliances.

Product Name	Hot Dipped Galvanized & Galvalume Steel Coil,Zinc Coated Steel ,GIHDGI,aluzinc Steel
Standard	EN10346, JIS G3302, ASTM A653,AS 1397,GB/T 2518,ASTM A792
Steel Grade	Dx51D, Dx52D, Dx53D, DX54D,DX55D,DX56D,DX57D, S220GD, S250GD, S280GD, S320GD,S350GD, S390GD,S420GD,S450GD,,S550GD, SGHC, SGH340, SGH400, SGH440, SGH490,SGH540, SGCC,SGCH,SGCD1, SGCD2, SGCD3, SGCD4,SGC340, SGC400 , SGC440, SGC490,SGC570; CS-A,CS-B,CS-C,Grade 33,grade 37.grade 40,garde 50,grade60,grade70,grade80 G1,G2,G3,G250,G300,G450,G550 As Requirement
Type	Coil/Sheet/Plate/Strip
Thickness	0.12mm-6.0mm or 0.8mm/1.0mm/1.2mm/1.5mm/2.0mm
Width	600mm-1800mm or 914mm/1000mm/1200mm/1219mm/1220mm/1524mm
Zinc Coating	Z30g/m2-Z600g/m2&AZ20-AZ220
Surface Structure	Normal spangle (N),, spangle-free(FS),Zero Spangel
Surface Structure	Oiled (O),Passivated(C),Passivated and oiled (CO) ,Sealed (S),Phosphate (P),Phoaphte and oiled (CO)/AFP
Coil Weight	3 Tons -8Tons
Coil ID	508mm/610mm

Chemical Composition

Standard	Grade	C	Si	Mn	P	S	Ti
Forcold FormingChinese Standard	DX51D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX52D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX53D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX54D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX56D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX57D+Z	0.12	0.50	0.60	0.100	0.045	0.30
Forcold FormingJapanese Standard	SGCC	0.15	0.50	0.80	0.050	0.030	0.025
	SGCD1 SGCD2	0.12 0.10	0.50 0.50	0.60 0.45	0.040 0.030	0.030 0.030	0.025 0.025
	SGCD3	0.08	0.50	0.45	0.030	0.030	0.025
	SGCD4	0.06	0.50	0.45	0.030	0.030	0.025
For StructureJapanese Standard	SGC340	0.25	0.50	1.70	0.200	0.035	0.025
	SGC400 SGC440	0.25 0.25	0.50 0.50	1.70 2.00	0.200 0.200	0.035 0.035	0.150 0.150
	SGC490	0.30	0.50	2.00	0.200	0.035	0.025
	SGC510	0.30	0.50	2.50	0.200	0.035	0.025
For StructureAISI Standard	S220GD+Z	0.20	0.60	0.70	0.100	0.045	0.025
	S250GD+Z	0.20	0.60	0.70	0.100	0.045	0.025
	S280GD+Z	0.20	0.60	0.70	0.100	0.045	0.025
	S320GD+Z	0.20	0.60	0.70	0.100	0.045	0.025
	S350GD+Z	0.20	0.60	0.70	0.100	0.045	0.150
	S550GD+Z	0.20	0.60	0.70	0.100	0.045	0.150

Mechanical Properties

Grade	Yield Strength MPa≥	Tensile Strength MPa≥	Elongation A%≥
DX51D Z/ZM/AZ/AM	240-380	270-500	22
DX52D Z/ZM/AZ/AM	140-300	270-420	26
DX53D Z/ZM/AZ/AM	140-260	270-380	30
DX54D Z/ZM/AZ/AM	120-220	260-350	36
S220GD Z/ZM/AM	220	300	20
S250GD Z/ZM/AZ/AM	250	330	19
S280GD Z/ZM/AM	280	360	18
S300GD A/AM	300	380	18
S320GD Z/ZM/AM	320	390	17
S350GD Z/ZM/AZ/AM	350	420	16
S450GD A/AM	450	480	15
S550GD Z/ZM/AZ/AM	550	550	-

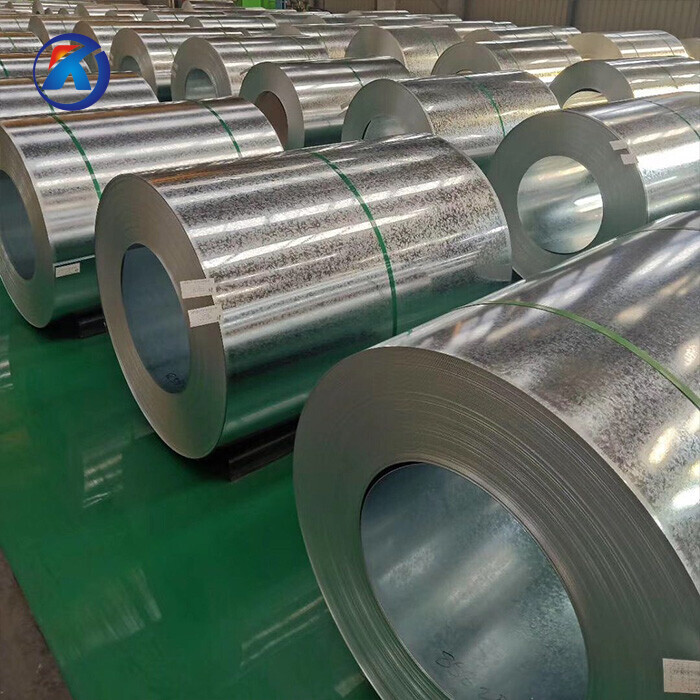

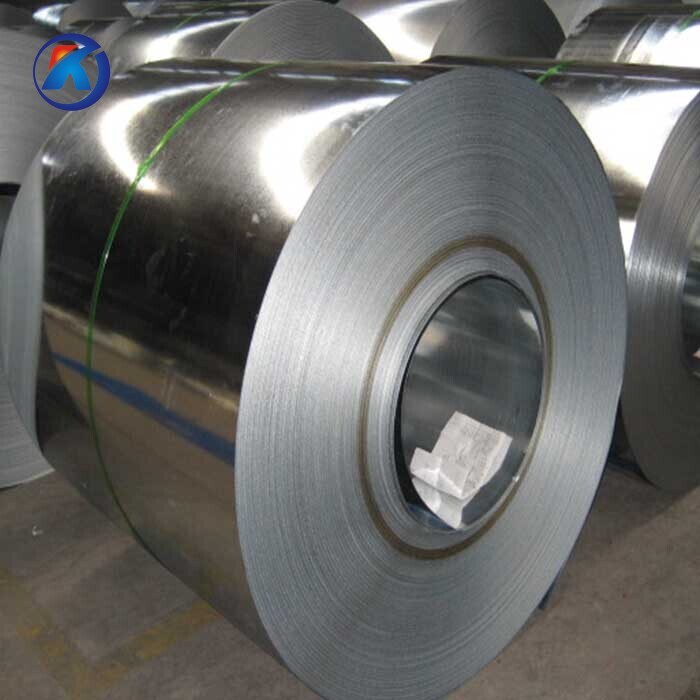

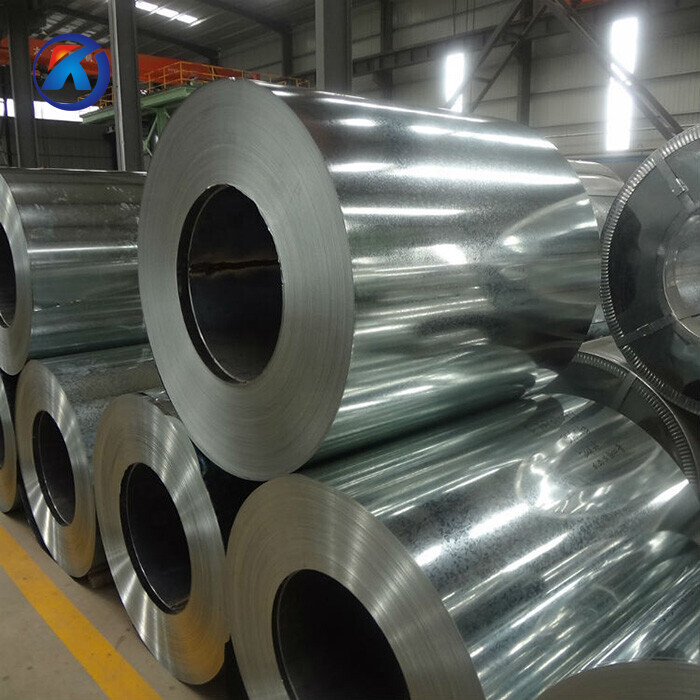

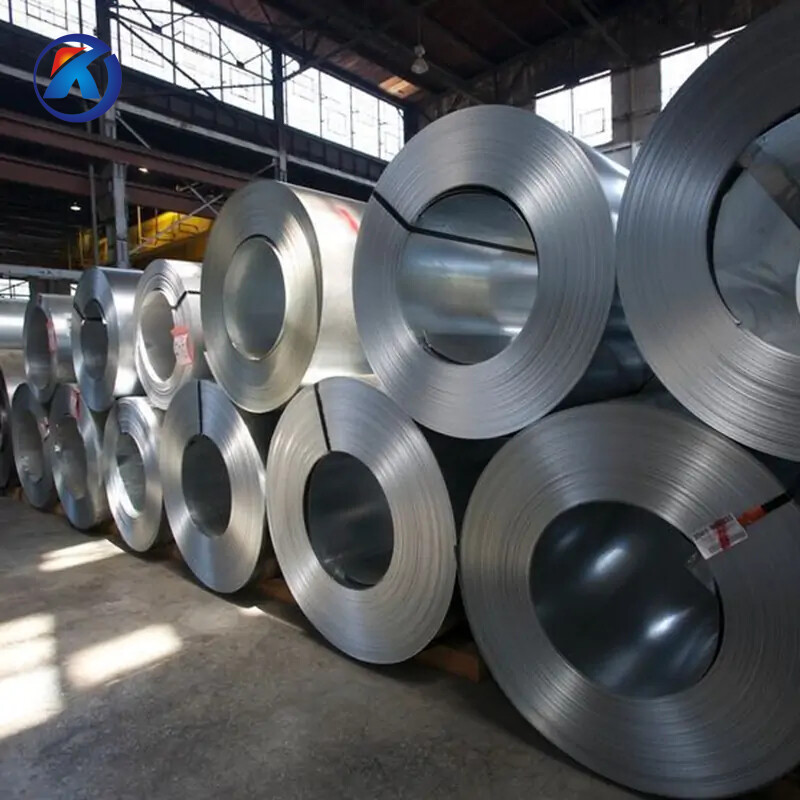

Product Show

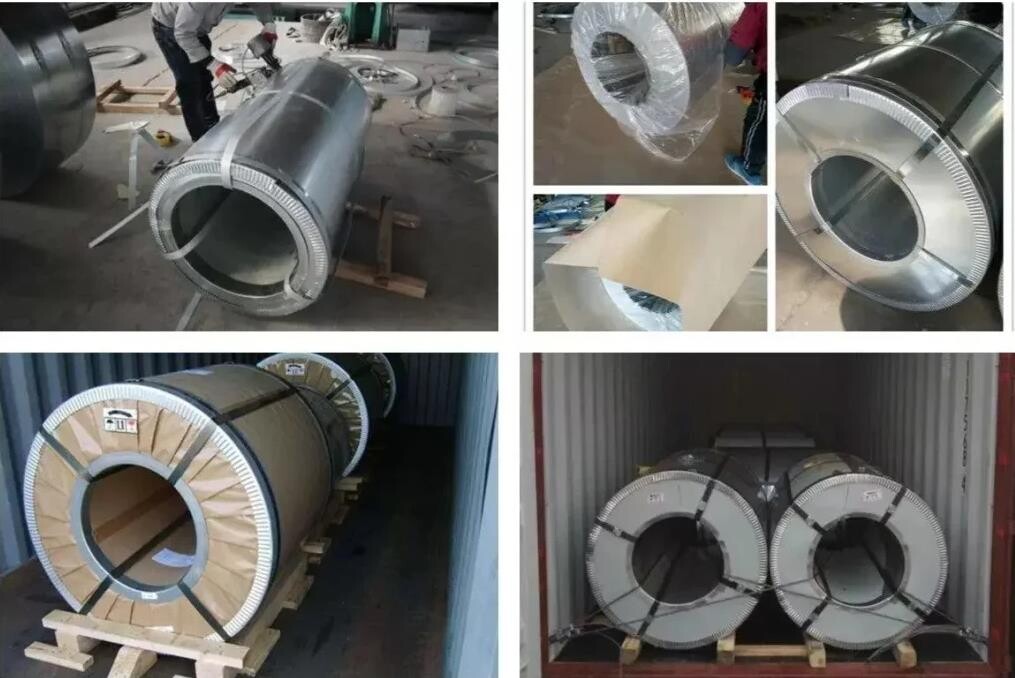

Packaging and Shipping

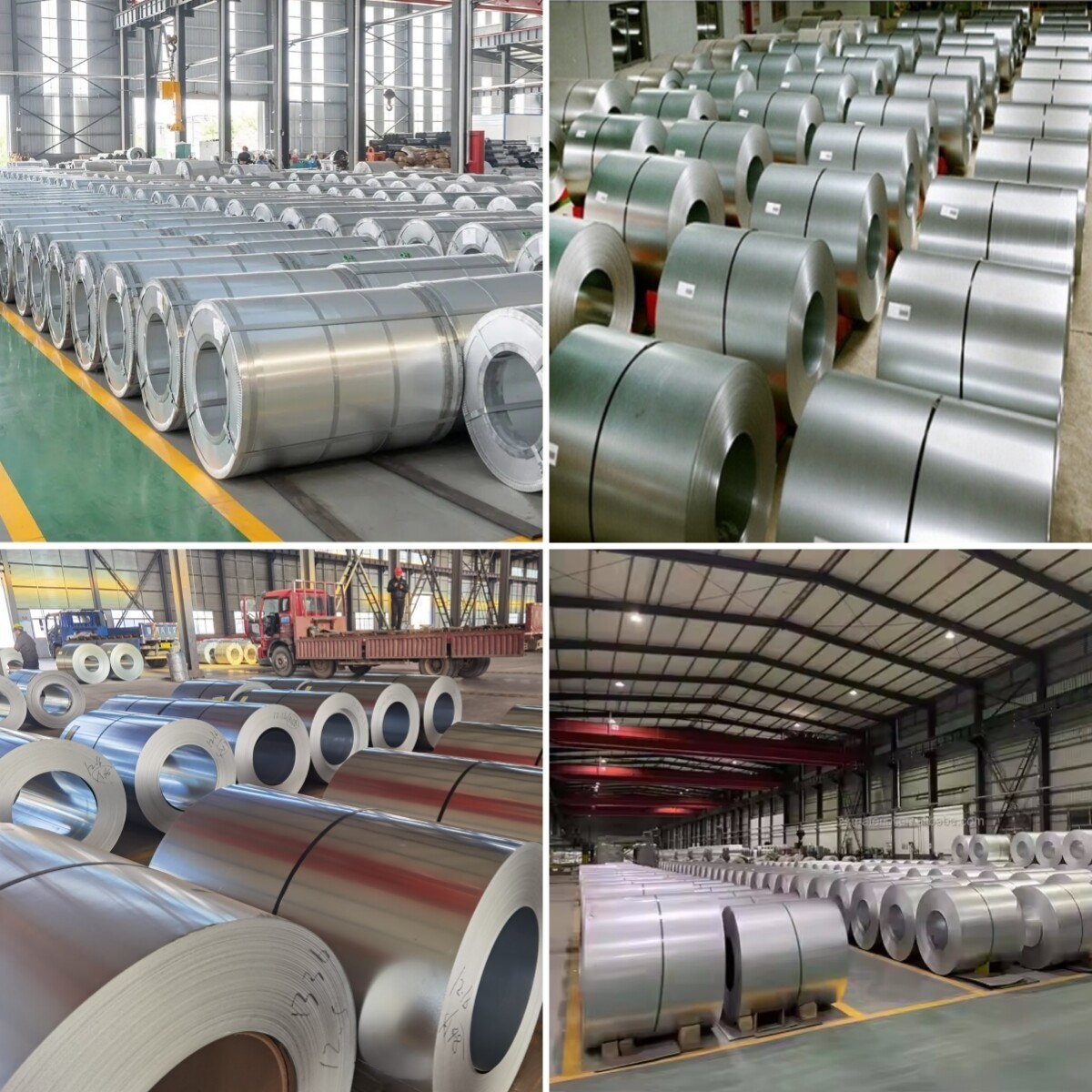

Factory Show
